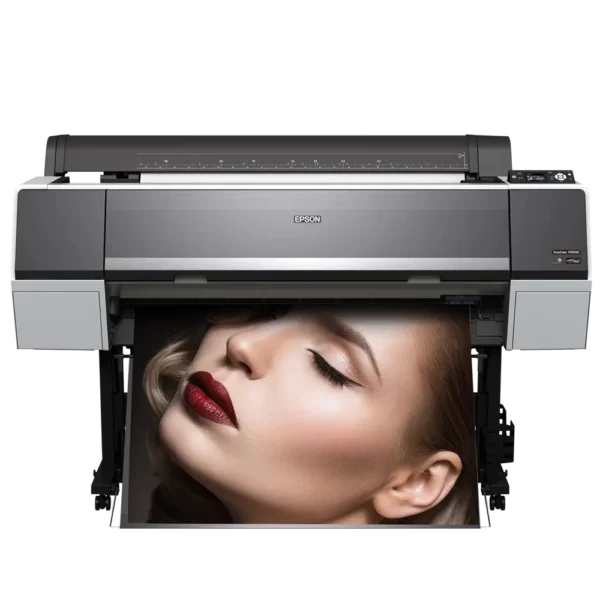

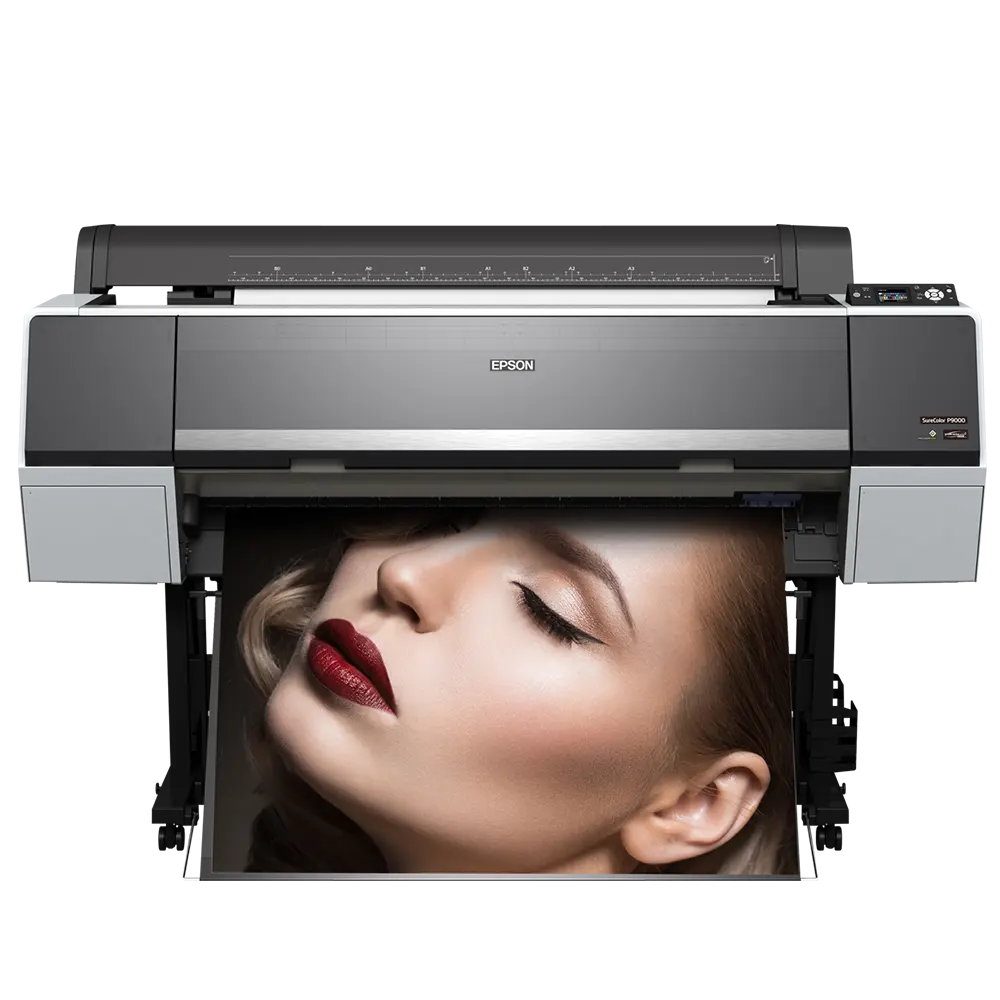

Epson SureColor SC P9000 Large Format Printer

Key Features: Epson SC-P9000 Wide Format Printer

Exceptional Print Quality

The Epson SureColor SC-P9000 wide format printer features a 2880×1440 dpi TFP head with VSDT, which ensures a consistent and predictable output in ultra-high resolution. This results in superior half-tones and optimized ink density for high-quality printing.

Excellent Image Stability

The high-quality professional photo printer produces prints that are highly water and scratch-resistant, making them suitable for long-term storage. Additionally, the prints boast excellent lightfastness, ensuring their longevity over time.

Versatile Operation

Supports a variety of media and prints at a rate of up to 37 m2/hr. Additionally, it handles sheets up to A1 Super B0 and roll-based stock up to 44″ (1118mm) wide (including A0). This allows borderless, edge-to-edge printing on boards up to 1.5mm thick.

Simple to Use

Provides spindle-free roll media loading, adjustable tension control, an automatic media management system, and a powerful auto cutter. Furthermore, it features flexible high-speed connections and a color LCD control screen with built-in assistance.

Flexible and Easy to Operate Large Format Printer

The Epson SC-P9000 Large Format Printer is a floor-standing printer with a carriage width of 44″ (1118mm) and an integrated folding output bin. Compatible with various media types, including basic bond, photo and fine-art paper, transparent film, translucent backlit, canvas, and specialized synthetics. Accepting roll media, it offers swift spindle-less mounting. Additionally, it provides automatic skew adjustment and a high-speed auto-cutter capable of cutting various stocks, including canvas. Sheet media is supported, and the printer has a straight-through paper path for a solid board up to 1.5mm thick. It can print edge-to-edge on both sheet and roll media, and it can print full borderless on roll stocks. The printer comes with one roll media adaptor set that can accommodate rolls with 2″ or 3″ cores.

You can acquire extra sets separately for high-volume work situations involving numerous media types. Additionally, roll paper belts are available as an option to help keep rolls taut while being stored. A barcode-based media management system helps track roll consumption and speeds up exchanges by automatically reconfiguring for various media types. For offline/automated post-production and roll-to-roll printing, an optional auto-take-up system is offered.

Perfect For Professional Photo Printing

The Epson SC-P9000 Printer is a flexible and excellent commercial photo printing machine that can work with a variety of media types and thicknesses. Well-suited for high-volume printing, it features a large carriage and integrated folding output bin, ideal for printing on such materials. Moreover, its capacity to accept roll media and cut most stocks, including canvas, is a beneficial feature. A straight-through paper route, which enables it to handle larger materials like solid board up to 1.5mm thick, is also a plus.

This printer is a high-quality, adaptable device that can handle a variety of media types and is ideal for settings with large volumes of work. Users can swiftly switch media types and maintain roll tension using roll media adapter sets and optional paper belts. The barcode-based media management system is a helpful resource for monitoring usage and enabling quick media exchange. A useful feature for roll-to-roll printing and offline/automated post-production is the optional Auto Take-Up system.

The SureColor Prographics line of printers is intended for business and professional use. Furthermore, it includes features that should make it simple for you to use and maintain. They have quick and adaptable networking capabilities, big-color LCD panels with simple menus, and built-in assistance. The driver software, compatible with the majority of operating systems, allows remote configuration. These printers require low maintenance, cater to high-volume production, and consistently deliver reliable performance and results.

Epson SC-P9000 Printer : UltraChrome HDX Ink Technology

One of the outstanding features of the Epson SureColor SC-P9000 Large Format Color Printer is its large 44″ printing capability. This printer employs Epson UltraChrome HDX Ink Technology with an 11-color archival pigment ink system for exceptional print quality. The SC P9000 Inks achieves detailed and color-accurate prints with its expanded color spectrum, incorporating orange and green inks. With cutting-edge technology and exceptional capabilities, this printer effortlessly handles tasks, whether producing graphics or pictures.

Superior Color

The Epson SureColor SC-P9000 commercial photo printer utilizes either Light Light Black (99% coverage) or Violet (98% coverage). With its 10-color Epson UltraChrome HDX ink, this printer enables printing with a high dMax (maximum density) and a wide color range.

Excellent Black & White

This Epson SureColor SC-P9000 wide-format printer produces high-quality black-and-white photographs suitable for galleries. It features automatic switching between photo and matte ink for printing on different types of media.

Absolute Imaging for Fine Art Printing

With a maximum print resolution of 2880×1440 dpi, Epson’s renowned Thin Film MicroPiezo head technology is used in the SureColor Prographics line. The TFP uses an electro-mechanical movement instead of competing methods that are based on heat. This method is gentler on ink chemistry, enhancing imaging with consistent output, consuming less power, offering flexibility, and ensuring durability. Micro-fine drop-on-demand nozzles enable superior dot shaping, reducing overspray and providing precise placement as well as volume/density control. The SC-P9000 color gamut has a head with 10 channels, a sophisticated LUT (look-up table), and an 11-cartridge supply system. Additionally, it includes automatic matte/photo black switching that maximizes dynamic range on various media types.

UltraChrome HDX ink is an elevated, water-based pigment ink with a wide color gamut, fast drying time, and water and scratch resistance. UltraChrome HDX ink’s all-pigment formulation contributes to vivid, long-lasting prints with excellent color accuracy and stability. Light black, vivid magenta, orange, and green inks enhance color balance and variety in prints, particularly in black and white and color prints. The increased Dmax and tonal range may also contribute to a better overall appearance and detail in the prints, making it ideal for fine art printing

Yellow ink enhances UV resistance, improving stability in printed images and preventing fading or discoloration over time. The light black ink option, useful for printing photos and fine art, reportedly covers 98% of PANTONE colors. The violet ink option, beneficial for specialist proofing and packaging work, reportedly covers 99% of PANTONE colors.

Optional Spectrophotometer

Epson SC-P9000 printers undergo calibration during construction, ensuring color consistency among prints from multiple printers of the same model. The color constancy level of the ink used in these printers is less than DeltaE 1.0. This means that the prints produced by these printers will remain visually constant when viewed under different lighting conditions. To increase color accuracy and consistency, an optional spectrophotometer is available for use with all SureColor P series.
Designed for direct mounting on a printer, the SpectroProofer filters out ultraviolet (UV) light to ensure more accurate color measurements. It provides highly accurate measurements and, when paired with a RIP (Raster Image Processor), automates color management for precise proofing in workflows.

The SpectroProofer comes with three UV filtering levels (ISO M0, M2, and M1), letting users choose the most suitable option.

Epson Print Layout Software & Drivers

This plugin for Adobe Photoshop, Lightroom, and Nikon ViewNX-i provides a simple, convenient, and versatile solution for creating photos suitable for diverse display requirements. Printing options include borderless or with a selection of border widths and styles, and images can be printed individually or as compound images. A sophisticated gallery wrap function makes it possible to produce output that may be mounted on a frame. The program’s controls include slider bars and color wheels, which are obvious and consistent and allow for accurate and simple modification.

It has an advanced black-and-white option as well as a variety of color settings for achieving different finishes and moods. Besides supporting ICC soft proofing, color production, preview, custom media registration, and panorama layouts, it includes template layouts. Business-oriented design: employs 11 cost-effective, large 700 ml ink cartridges, offers an optional 320 GB HDD, and requires minimal user maintenance. Available in various configurations, it offers optional features like a Spectro Proofer and an Auto Take-Up System for continuous roll-to-roll production. Additionally, users can select Epson Cover Plus service packs for coverage of up to five years. It is widely compatible with a variety of RIP, design, production, and workflow management programs.

To learn more about the technical details of this printer, please refer to the attached product datasheet or visit the provided link: Product Support.

Weight	195 kg
Dimensions	123 × 187 × 68 cm
brands	Epson

Print Technology	Epson TFP PrecisionCore printhead
Ink Technology	UltraChrome® HDX
Colors	Light Black, Light Light Black, Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Orange, Green
Nozzle Configuration	360 Nozzles Black, 360 Nozzles per Color
Minimum Droplet Size	3.5 pl
Ink tank capacity	700 ml
Printing Resolution	2,880 x 1,440 DPI
Compatible Paper Thickness	0.08 mm - 1.5 mm
Paper Formats	A0, A1, A2 (42.0x59.4cm), A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), B1 (72.8x102.8 cm), B2 (51.4x72.8 cm), B3, B4, 17", 24", 44", User defined, B0
Product Dimensions	187 x 123 X 68 cm (Width x Depth x Height)
Product weight	195 kg
Package Dimension
Package Weight
SKU	C11CE40301A0
EAN	8715946607313
Media Handling	Fine Art, Roll Paper, Thick Media Support
Warranty	12 months of On-site service ( Terms & Condition Apply)
